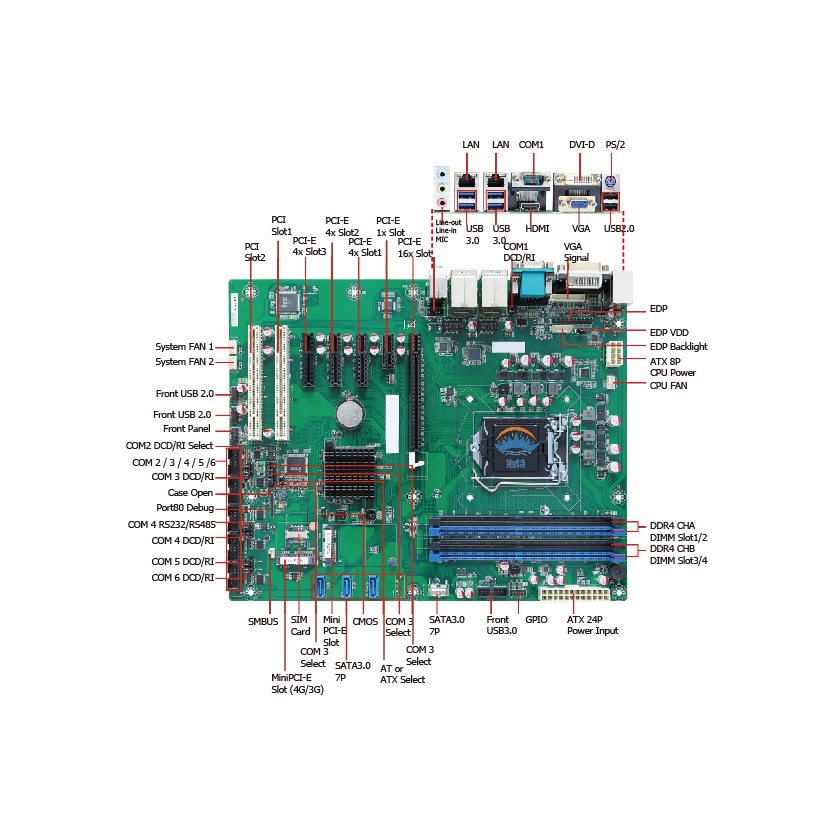

MB-A170-A 6th/7th Gen Intel? Core ? Processor ATX
發布時間：2025-01-04
瀏覽次數：0
General CPU Intel? 6th/7th Generation Core /Pentium/Celeron CPU，LGA1151，Support MAX CPU TDP 95W 芯片組 Intel? Q170 內存 4×DDR4 2133/2400, MHz UDIMM, Up to 64 GB 硬盤 3 X SATA 3.0，RAID 0/1/5/10，1×mSATA 擴展槽 1 X PCIe X16 (PCIe 16X, GEN3)
3 X PCIe X4 (PCIe 4X, GEN3)
1 X PCIe X1 (PCIe 1X, GEN3)
2 X PCI，1 X Mini PCIe (4G/3G)
系統 Windows 7/8/10, Linux I/O 接口 以太網 2 X Intel GBE LAN (10/100/1000 Mbps, RJ45) 串口 1 X RS232 (COM1 , Rear IO)
3 X RS232 (COM2/5/6 , Header)
1 X RS232/RS422/RS485 (COM3 , Header)
1 X RS232/RS485 (COM4 , Header)USB 4 X USB3.0 (TYPE-A , Rear IO)
2 X USB3.0 (Header)
2 X USB2.0 (TYPE-A , Rear IO)
1 X USB2.0 (TYPE-A)，4 X USB2.0 (Header)音頻 Realtek ALC662 5.1 Channel HDA Codec ,
Support MIC-IN/LINE-IN/LINE-OUTPS/2 1 X PS/2 Port (Keyboard & Mouse) GPIO 1 X 8-bit GPIO 顯示 顯示界面 1 X VGA , up to 1920x1200@60Hz
1 X HDMI , to 4096x2160@24Hz
1 X DVI , up to 1920x1200@60Hz
1 X EDP , up to 1920x1200@60Hz機械和環境 尺寸 305mm X 244mm 電源 ATX 溫度 Operation: 0℃~60℃, Storage: -25℃~75℃ 濕度 Operation: 10%~90%, Storage: 5%~95%, non-condensing
